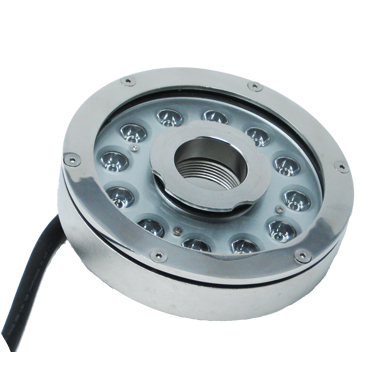

UL316R-36UL316R-36
36W (12 X 3W) - RGB-DMX - 12VAC/24VDC
SUBMERSIBLE OR DRY
CAST 316L SS
REPLACEABLE LEDS
UL CERTIFIED FOR SWIMMING POOLS
SUBMERSIBLE OR DRY
CAST 316L SS
REPLACEABLE LEDS
UL CERTIFIED FOR SWIMMING POOLS

Cast Stainless Steel - Replaceable LEDs
Submersible or Dry Installation
SS Flush Mount Mirror Polish Face Ring
Optional threaded center adapter to fit 1” nozzle, 1 1/2” pipe
Request Quote
Submersible or Dry Installation
SS Flush Mount Mirror Polish Face Ring
Optional threaded center adapter to fit 1” nozzle, 1 1/2” pipe
Variants
-
Variant
-
- UL316R-40RW
- UL316R-24-brochure UL316R-40RW
Specifications
-
Specification
Description
-
- Input voltage
- 12VAC or 24VDC
-
- Output power
- 36 watts (12X3W)
-
- Rendering Index
- >70rA (warm white)
-
- Beam angle
- 10°, 30, 45
-
- LEDs
- Replaceable - Internal Driver
-
- Material
- Cast 316L Stainless Steel
Silicone gasket - tempered glass lens
-
- Face ring
- 316L SS Flush Mount
-
- Color options
- RGB-DMX
-
- White
- CREE-XPE - 2700K to 6500K
-
- LEDs operating life
- > 50,000 hours
-
- IP rating
- IP68 - Certified Submersible or Dry
-
- Cable
- 9 FEET- SOW 18/5 - longer lengths can be ordered
-
- Dimensions
- Diameter 7 1/8"x 1.4"H - center opening 1.85”
-
- Certifications
- cULus CSA22.2 no.89 - including swimming pools and splash pads - Meets 680 standards
-
- Installation
- Submersible or Dry - optional SS threaded adapter to fit 1” nozzle, 1 1/2” pipe
