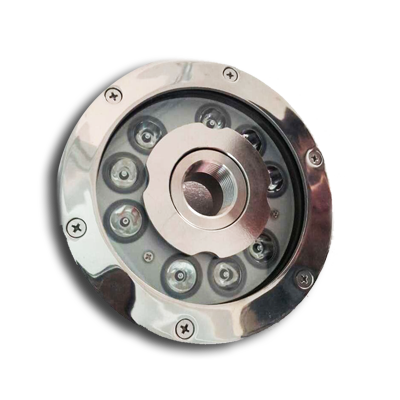

UL316R-27UL316R-27

27W (9 X 3W) - RGB-DMX - 12AC/24DC
SUBMERSIBLE OR DRY
CAST 316L SS
REPLACEABLE LEDS
UL CERTIFIED FOR SWIMMING POOLS
Options Available
RGB-DMX or White
Cast 316L Stainless Steel - Replaceable LEDs
Submersible or Dry Installation
SS Mirror Polish Flush mount face ring
Optional threaded center adapter to fit 1” nozzle, 1 1/2” pipe
Request Quote

Variants

Specifications

    • Specification

      Description

    • Input voltage
      12VAC or 24VDC
    • Output power
      27 watts (9X3W)
    • Rendering Index
      >70rA (warm white)
    • Beam angle
      10°, 30, 45
    • LEDs
      Replaceable - Internal Driver
    • Material
      Cast 316L Stainless Steel
      Silicone gasket - tempered glass lens
    • Face ring
      316L SS Flush Mount
    • Color options
      RGB-DMX
    • White
      CREE-XPE - 2700K to 6500K
    • LEDs operating life
      > 50,000 hours
    • IP rating
      IP68 - Certified Submersible or Dry
    • Cable
      9 FEET- SOW 18/5 - longer lengths can be ordered
    • Dimensions
      Diameter 6.3"x 1.4" center opening 1.85”
    • Certifications
      cULus CSA22.2 no.89 - including swimming pools and splash pads - MEETS 680 Standards
    • Installation
      Submersible or Dry - optional SS threaded adapter to fit 1” nozzle, 1 1/2” pipe

Showcase


Downloads

DataSheets

CAD files available upon request.

We are a wholesaler with a dealer network that distributes our LED's internationally to professional fountain designers and qualified trades.
