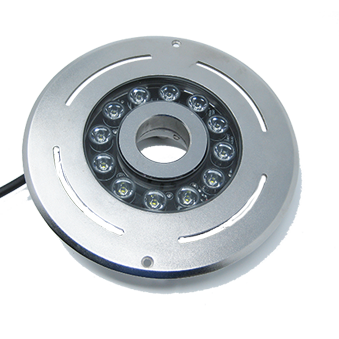

UL316RS-36UL316RS-36

36W (12 X 3W) - RGB-DMX - 12VAC/24VDC
OPTIONAL 48W (12 X 4W) - RGBW - 24VDC
SUBMERSIBLE OR DRY
CAST 316L SS
REPLACEABLE LEDS
UL CERTIFIED FOR SWIMMING POOLS
Cast 316L Stainless Steel - Replaceable LEDs
Submersible or Dry Installation
SS Flush mount Face Ring - Center opening 1.85”
3 x SS bolts for pipe mount
Request Quote

Specifications

    • Specification

      Description

    • Input voltage
      12VAC or 24VDC - 48W -24VDC only
    • Output power
      36 watts (12X3W) -optional 48 watts (12x4W)
    • Rendering Index
      >70rA (warm white)
    • Beam angle
      10°, 30, 45, 60, 90 - Bead lens 15, 30, 60, 90
    • LEDs
      Replaceable - Internal Driver
    • Material
      Cast 316L Stainless Steel
      Silicone gasket - tempered glass lens
    • Face ring
      316L SS Flush Mount
    • Color options
      RGB-DMX optional RGBW (3000K, 4000K, 6000K)
    • White
      CREE-XPE - 2700K to 6500K
    • LEDs operating life
      > 50,000 hours
    • IP rating
      IP68 - Certified Submersible or Dry
    • Cable
      9 FEET- SOW 18/5 - longer lengths can be ordered
    • Dimensions
      Diameter 9.8"x 2.3" center opening 1.85”
    • Certifications
      cULus CSA22.2 no.89 - including swimming pools and splash pads meets 680 standards
    • Installation
      Submersible or Dry- 3 x SS bolts for pipe mount

Downloads

DataSheets

CAD files available upon request.
