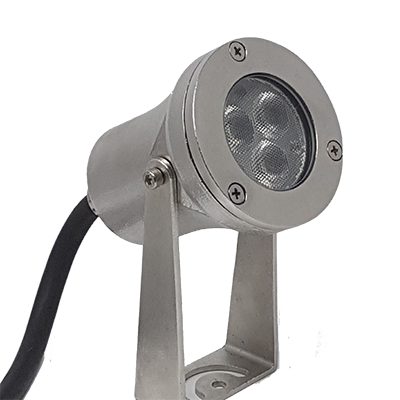

UL316-9AUL316-9A
9W (3 X 3W) - RGB-DMX - 12VAC/24VDC
SUBMERSIBLE OR DRY
CAST 316L SS
REPLACEABLE LEDS
UL CERTIFIED FOR SWIMMING POOLS
Options Available
SUBMERSIBLE OR DRY
CAST 316L SS
REPLACEABLE LEDS
UL CERTIFIED FOR SWIMMING POOLS
Cast 316L Stainless Steel - Replaceable LEDs
Removable Yoke, optional tripod, custom extension post
Submersible or Dry Installation
Flush Mount Face Ring
SS Niche optional
Request Quote
Removable Yoke, optional tripod, custom extension post
Submersible or Dry Installation
Flush Mount Face Ring
SS Niche optional
Variants
-
Variant
-
- UL316-9A-Inground
- DataSheet PDF: UL316-9A-inground_datasheet
-
- UL316-10RW
- DataSheet PDF: UL316-10RW
-
- UL316-12RW
- DataSheet PDF: UL316-12RW
Specifications
-
Specification
Description
-
- Input voltage
- 12VAC or 24VDC
-
- Output power
- 9 watts (3X3W), optional 10 watts and 12 watts RGBW (see UL316-10RW or UL316-12RW)
-
- Rendering Index
- >70rA (warm white)
-
- Beam angle
- 10° 20, 45, 60, 90 - Bead lens 25, 40
-
- LEDs
- Replaceable - Internal Driver
-
- Material
- Cast 316L Stainless Steel
Silicone gasket - tempered glass lens
-
- Face ring
- 316L SS Flush Mount
-
- Color options
- RGB-DMX
-
- White
- CREE-XPE - 2700K to 6500K
-
- LEDs operating life
- > 50,000 hours
-
- IP rating
- IP68 - Certified Submersible or Dry
-
- Cable
- 9 FEET - SOW 18/5 longer lengths can be ordered
-
- Dimensions
- Diameter 3.2"x 6"H with yoke
-
- Certifications
- cULus - CSA22.2 no.89 - including swimming pools and splash pads - meets 680 standards
-
- Installation
- Submersible or Dry - optional tripod and/or custom height SS extension post
