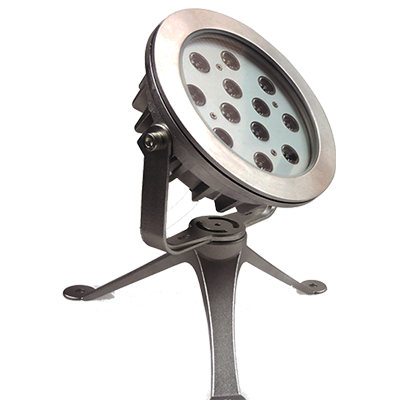

UL316-36UL316-36

36W (12 X 3W) - RGB-DMX - 12VAC/24VDC
SUBMERSIBLE OR DRY
CAST 316L SS
REPLACEABLE LEDS
UL CERTIFIED FOR SWIMMING POOLS
Options Available
Cast Stainless Steel - Replaceable LEDs
Removable Yoke, optional tripod, custom extension post
Submersible or Dry Installation
Flush Mount Face Ring
SS Niche optional
Request Quote

Variants

Specifications

    • Specification

      Description

    • Input voltage
      12VAC or 24VDC
    • Output power
      36 watts (12X3W)
    • Rendering Index
      >70rA (warm white)
    • Beam angle
      10°, 30, 45, 60, 90 - Bead lens 15, 30, 60, 90
    • LEDs
      Replaceable - Internal Driver
    • Material
      Cast 316L Stainless Steel
      Silicone gasket - tempered glass lens
    • Face ring
      316L SS Flush Mount
    • Color options
      RGB-DMX
    • White
      CREE-XPE - 2700K to 6500K
    • LEDs operating life
      > 50,000 hours
    • IP rating
      IP68 - Certified Submersible or Dry
    • Cable
      9 FEET - SOW 18/5 longer lengths can be ordered
    • Dimensions
      Diameter 6.89"x 7.2"H with yoke
    • Certifications
      cULus - CSA22.2 no.89 - including swimming pools and splash pads - meets 680 standards
    • Installation
      Submersible or Dry - optional tripod and/or custom height SS extension post

Downloads

DataSheets

CAD files available upon request.

We are a wholesaler with a dealer network that distributes our LED's internationally to professional fountain designers and qualified trades.

Request Quote
