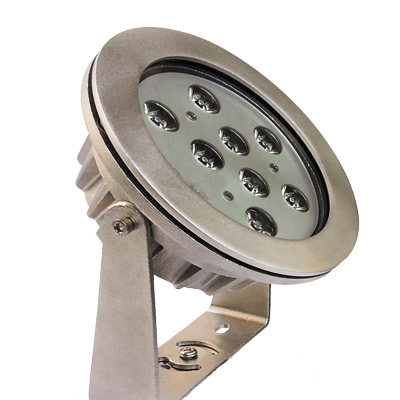

UL316-32RWUL316-32RW

32W (8 X 4W) - RGBW - 12VAC/24VDC
SUBMERSIBLE OR DRY
CAST 316L SS
REPLACEABLE LEDS
UL CERTIFIED FOR SWIMMING POOLS
Cast 316L Stainless Steel - Replaceable LEDs
Removable Yoke, optional tripod, custom extension post
Submersible or Dry Installation
Flush Mount Face Ring
SS Niche optional
Request Quote

Specifications

    • Specification

      Description

    • Input voltage
      12VAC or 24VDC (24VDC recommended)
    • Output power
      32 watts (8X4W)
    • Rendering Index
      >70rA (warm white)
    • Beam angle
      20°, 45, 60, 90 - Bead lens 30, 60, 90
    • LEDs
      Replaceable - Internal Driver
    • Material
      Cast 316L Stainless Steel
      Silicone gasket - tempered glass lens
    • Face ring
      316L SS Flush Mount
    • Color options
      RGBW (3000k, 4000k, 6000k)
    • White
      CREE-XPE - 2700K to 6500K
    • LEDs operating life
      > 50,000 hours
    • IP rating
      IP68 - Certified Submersible or Dry
    • Cable
      9 FEET - SOW 18/5 longer lengths can be ordered
    • Dimensions
      Diameter 5.9"x 2.5"
    • Certifications
      cULus - CSA22.2 no.89 - including swimming pools and splash pads - meets 680 standards
    • Installation
      Submersible or Dry - optional tripod and/or custom height SS extension post

Downloads

DataSheets

CAD files available upon request.
