E-FlexE-Flex

Professional flexible linear LED
Whites, RGB, or RGBW- 24VDC

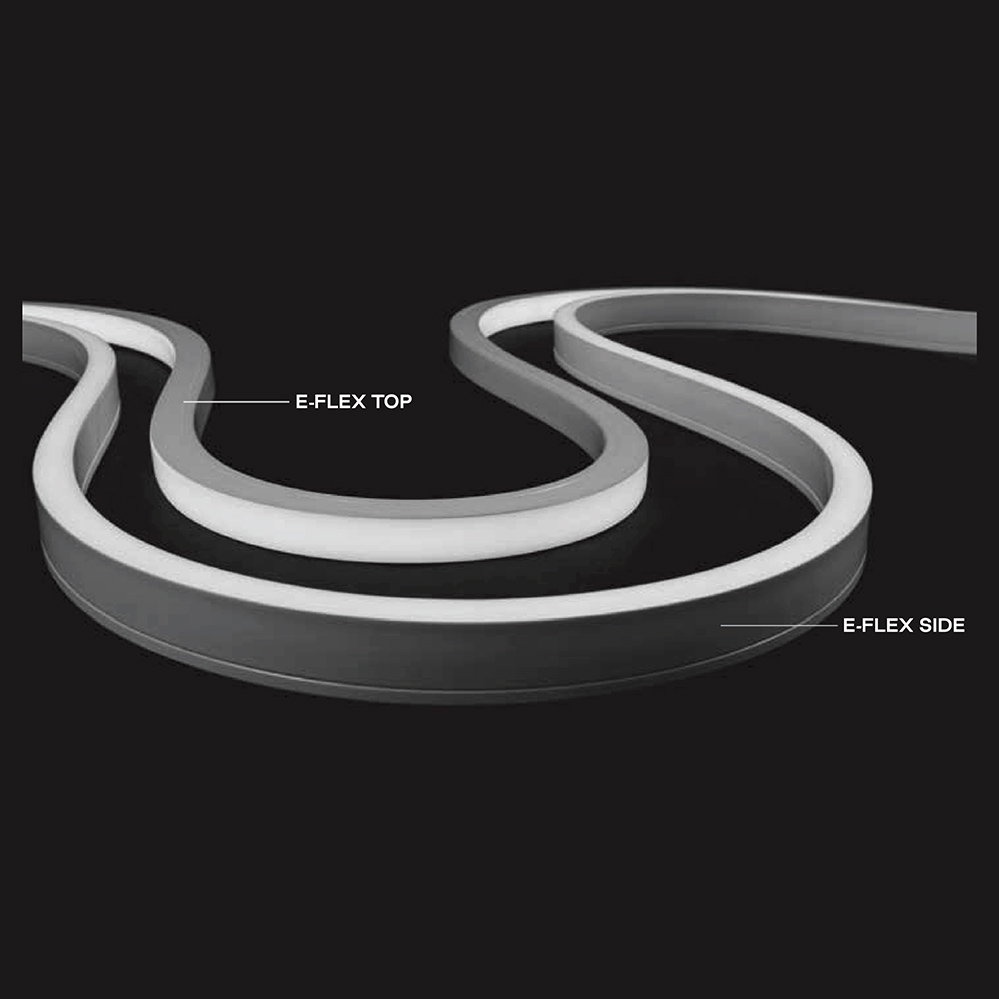

Top or side bend available
Indoor or Outdoor installations
UL Certified for swimming pools
E-Flex is designed for curved or straight installations to enhance building facades, restaurants, hotels, columns, fountains, indoors and out. Installation is simple using our SS clips. It is possible to cut the light fixtures and seal with the end caps on site but we cannot guarantee the IP rating unless sealed at the factory.
Request Quote

Specifications

    • Specification

      Description

    • Input voltage
      24VDC- Constant voltage
    • Wattage-RGB-DMX version
      20" 9W, 39" 18W, 79" 36W, 197" 90W
    • White color options
      2700k, 3000k,3500k,4500k
    • Wattage white options
      20" 5W, 39"10W, 79" 20W, 197"50W- ON/OFF-Dimmable
    • Rendering Index
      >80
    • Luminous efficiency
      98 lm/W
    • Lens Degree options
      11°, 15°, 22°,27°,30°, 37°,42°,45°
    • Body
      Flexible resin encapsulated- UV resistant
    • Radius
      Flexible radius to 150mm ( 5.9")
    • Chromatic Selection
      3 step MacAdam
    • IP rating
      IP68- recommend above water for long term installation
    • Dimensions
      12mm (0.472" )W x 33mm(1.299") H
    • Certifications
      cULus 969, CSA22.2 no.89 ,UL8750, UL676
    • Installation
      SS spring type clips - 16mm (0.629")W x 6.2mm(0.244")
      recommended spacing every 250mm (9.84")
    • SS Channels
      Our new flexible SS channel has a total length of 16ft with 10 connecting sections.
    • Weight per meter
      300g. (10.58oz)

Downloads

CAD files available upon request.

We are a wholesaler with a dealer network that distributes our LED's internationally to professional fountain designers and qualified trades.
