UL316-ORIONUL316-ORION

5W (1 X 5W) - CREE RGBW-DMX, WHITE * 5W - 12VAC/24VDC
SUBMERSIBLE OR DRY
CAST 316L SS - OPTIONAL FLANGE
REPLACEABLE LEDS
UL CERTIFIED FOR SWIMMING POOLS

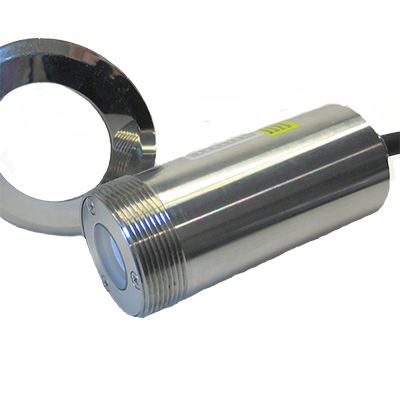

Cast 316L Stainless Steel - Replaceable LEDs
Submersible or Dry Installation
Optional flange and SS Niche
Request Quote

Specifications

    • Specification

      Description

    • Input voltage
      12VAC or 24VDC
    • Output power
      5 watts (1X5W) CREE RGBW-DMX or white
    • Rendering Index
      >70rA (warm white)
    • Beam angle
      10°-20, 45, 60, 90 - Bead lens 30, 60, 90
    • LEDs
      Replaceable - Internal Driver
    • Material
      Cast 316L Stainless Steel
      Silicone gasket - tempered glass lens
    • Flange
      Optional w/ lock nut - black or mirror polish SS
    • Color options
      RGB-DMX or RGBW (3000K, 4000K, 6000K)
    • White
      CREE-XPE - 2700K to 6500K
    • LEDs operating life
      > 50,000 hours
    • IP rating
      IP68 - Submersible or Dry
    • Cable
      9 FEET - SOW 18/5 Longer cable can be ordered
    • Dimensions
      2"MNPT x 5 3/16"
    • Certifications
      cULus - CSA22.2 no.89 - including swimming pools and splash pads - meets 680 standards
    • Installation
      Threads into 2" NPT, suspend by flange, or niche mount

Downloads

DataSheets

CAD files available upon request.
