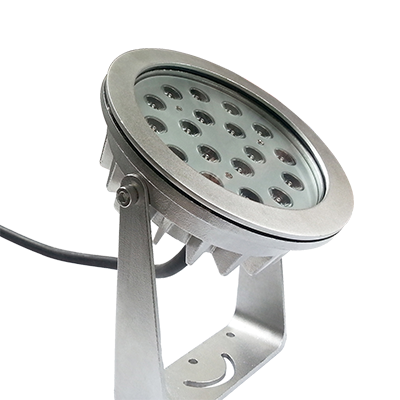

UL316-72RWUL316-72RW

72W (18 X 4W) - RGBW - 24VDC
SUBMERSIBLE
CAST 316L SS
REPLACEABLE LEDS
UL CERTIFIED FOR SWIMMING POOLS
Options Available
Cast 316L Stainless Steel - Replaceable LEDs
Removable Yoke, optional tripod , custom extension post
Submersible Installation only
Flush Mount Face Ring
SS Niche optional
Request Quote

Variants

Specifications

    • Specification

      Description

    • Input voltage
      24VDC
    • Output power
      72 watts (18X4W)
    • Rendering Index
      >70rA (warm white)
    • Beam angle
      20°, 45, 60, 90 - Bead lens 30, 60, 90
    • LEDs
      Replaceable- Internal Driver
    • Material
      Cast 316L Stainless Steel
      Silicone gasket - tempered glass lens
    • Face ring
      316L SS Flush Mount
    • Color options
      RGBW (3000K, 4000K, 6000K)
    • White
      CREE-XPE - 2700K to 6500K
    • LEDs operating life
      > 50,000 hours
    • IP rating
      IP68 - Certified Submersible
    • Cable
      9 FEET - SOW 18/5 longer lengths can be ordered
    • Dimensions
      Diameter 7 1/2"x 7 1/2"H with yoke
    • Certifications
      cULus - CSA22.2 no.89 - including swimming pools and splash pads - meets 680 standards
    • Installation
      Submersible - optional tripod and /or custom height SS extension post

Downloads

DataSheets

CAD files available upon request.
