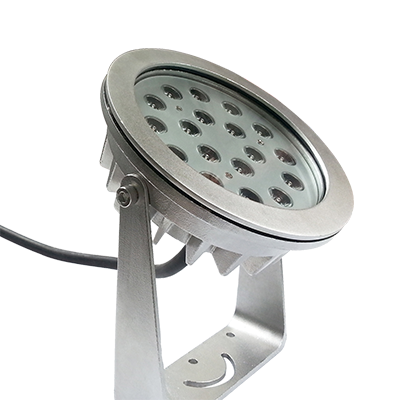

UL316-54UL316-54

54W (18 X 3W) - RGB-DMX - 24VDC
SUBMERSIBLE OR DRY
CAST 316L SS
REPLACEABLE LEDS
UL CERTIFIED FOR SWIMMING POOLS
Cast 316L Stainless Steel - Replaceable LEDs
Removable Yoke, optional tripod, custom extension post
Submersible or Dry Installation
Flush Mount Face Ring
SS Niche optional
Request Quote

Specifications

    • Specification

      Description

    • Input voltage
      24VDC
    • Output power
      54 watts (18X3W)
    • Rendering Index
      >70rA (warm white)
    • Beam angle
      10°, 30, 45, 60, 90 - Bead lens 15, 30, 60, 90
    • LEDs
      Replaceable - Internal Driver
    • Material
      Cast 316L Stainless Steel
      Silicone gasket - tempered glass lens
    • Face ring
      316L SS Flush Mount
    • Color options
      RGB-DMX
    • White
      CREE-XPE - 2700K to 6500K
    • LEDs operating life
      > 50,000 hours
    • IP rating
      IP68 - Certified Submersible or Dry
    • Cable
      9 FEET - SOW 18/5 longer lengths can be ordered
    • Dimensions
      Diameter 7 1/2"x 7 1/2"H with yoke
    • Certifications
      cULus - CSA22.2 no.89 - including swimming pools and splash pads - meets 680 standards
    • Installation
      Submersible or Dry - optional tripod and/or custom height SS extension post

Downloads

DataSheets

CAD files available upon request.

We are a wholesaler with a dealer network that distributes our LED's internationally to professional fountain designers and qualified trades.
